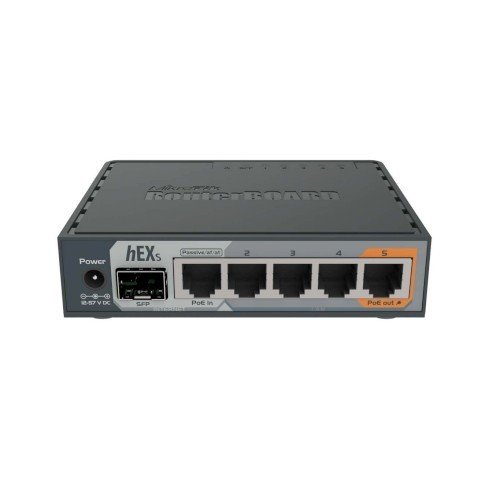

MikroTik RB760iGS hEX S 880MHz Dual Core 256MB 5xGb PoE L4
MikroTik hEX S 5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, support for IPsec hardware encryption and The Dude server packagehEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Specifications:
Details |
|
Product code |
RB760iGS |
Architecture |
MMIPS |
CPU |
MT7621A |
CPU core count |
2 |
CPU nominal frequency |
880 MHz |
CPU Threads count |
4 |
Dimensions |
113 x 89 x 28 mm |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
256 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C .. +70°C |
Powering:
Details |
|
Max Power consumption |
11W |
PoE in |
802.3af/at |
PoE out |
Passive PoE up to 57V |
PoE in input Voltage |
12-57 V |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-57 V |
Ethernet:
Details |
|
10/100/1000 Ethernet ports |
5 |
Fibre:
Details |
|
SFP ports |
1 |
Peripherals:
Details |
|
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Other:
Details |
|
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
