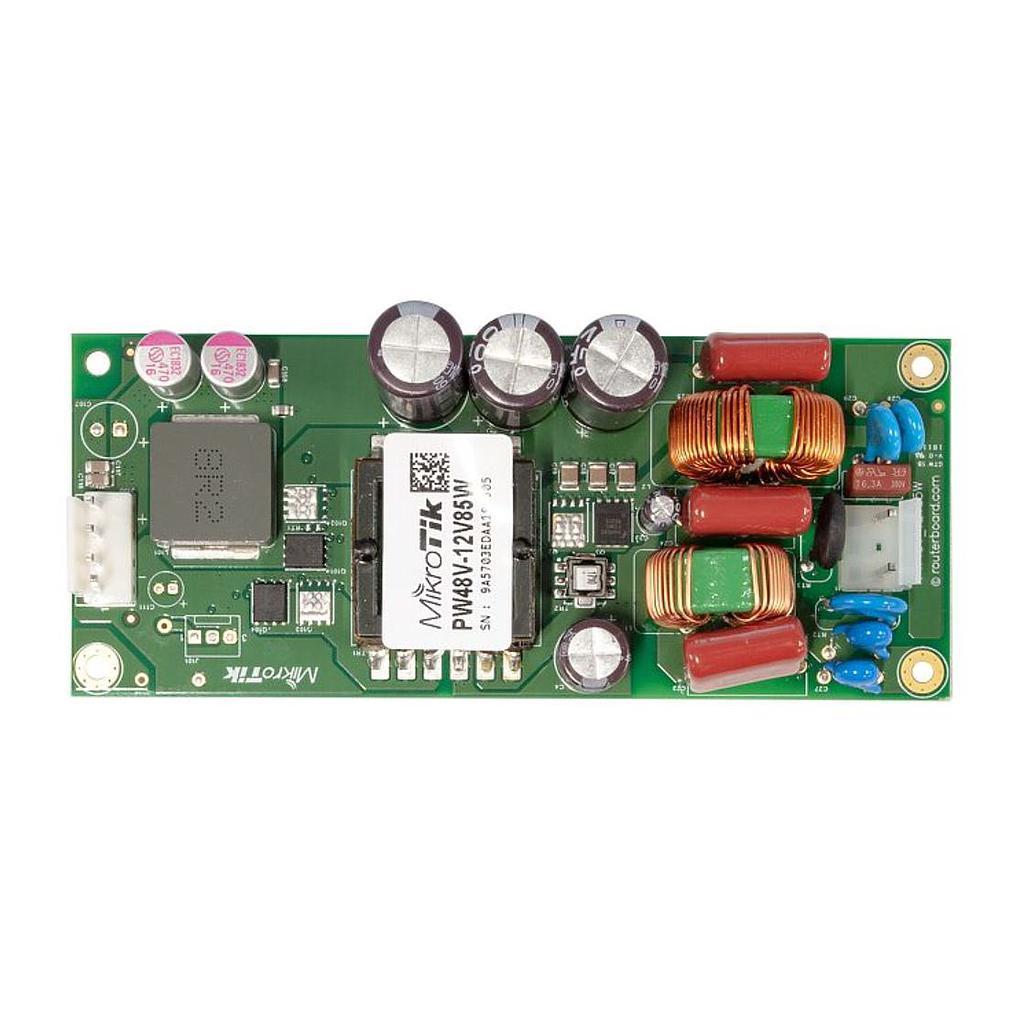

±48 V DC telecom Open Frame Power supply with 12 V 7 A output, for use with new “r2†revision of Cloud Core Routers or the new CRS326-24S+2Q+RM. Simply remove one of the current power supplies and replace with the new PW48V-12V85W for ±48 V installations.
Although made specifically for -48V telecom power, the supported input range is from 36V to 57V. Note: To use, positive terminal must be 36 to 57V higher potential than negative terminal (eg. if negative terminal is -48 V, the positive must be -12 to +9 V).
Product specifications:
Details |
|
Product code |
PW48V-12V85W |
Output Voltage |
12V, 7A |
PoE in |
±48V, 3A |
Tested ambient temperature |
-20...+60C |
