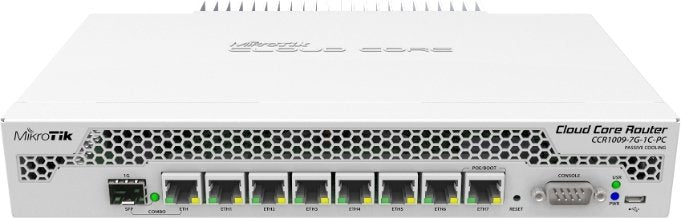

MikroTik CCR1009-7G-1C-PC 7x Gigabit Ethernet, 1x Combo port, 9 cores x 1GHz CPU, 1GB RAM, passive cooling, OS L6
MikroTik CCR1009-7G-1C-PC 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 9 cores x 1GHz CPU, 1GB RAM, passive cooling case, RouterOS L6
The MikroTik CCR1009-7G-1C-PC updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
This MikroTik CCR1009-7G-1C-PC is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.
| Details | |
|---|---|
| Product code | CCR1009-7G-1C-PC |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1 GHz |
| Dimensions | 272x190x47mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20C to +60C |
| Details | |
|---|---|
| Max Power consumption | 25W |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 18-57 V |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 7 |
| Ethernet Combo ports | 1 |
| Details | |
|---|---|
| Serial port | RS232 + Header |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
