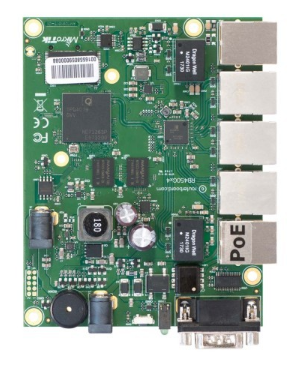

Mikrotik RB450Gx4 716MHz 1GB 4 Core 5xGb microSD L5
The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.
It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.
The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
Specifications:
Details |
|
Product code |
RB450Gx4 |
Architecture |
ARM 32bit |
CPU |
IPQ-4019 |
CPU core count |
4 |
CPU nominal frequency |
716 MHz |
Dimensions |
90 x 115 mm |
License level |
5 |
Operating System |
|
Size of RAM |
1 GB |
Storage size |
512 MB |
Storage type |
NAND |
Tested ambient temperature |
-40°C to 70°C |
Powering:
Details |
|
PoE in |
802.3af/at |
PoE in input Voltage |
12-57 V |
PoE out |
Passive PoE |
PoE-out ports |
Ether5 |
Number of DC inputs |
3 (DC jack, PoE-IN) |
DC jack input Voltage |
10-57 V |
Max out per port output (input > 30 V) |
500 mA |
Max out per port output (input < 30 V) |
500 mA |
Max total out (A) |
500 mA |
Max power consumption |
16 W |
Max power consumption without attachments |
4 W |
Ethernet:
Details |
|
10/100/1000 Ethernet ports |
5 |
Peripherals:
Details |
|
Memory card type |
microSD |
Serial port |
RS232 |
Other:
Details |
|
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
