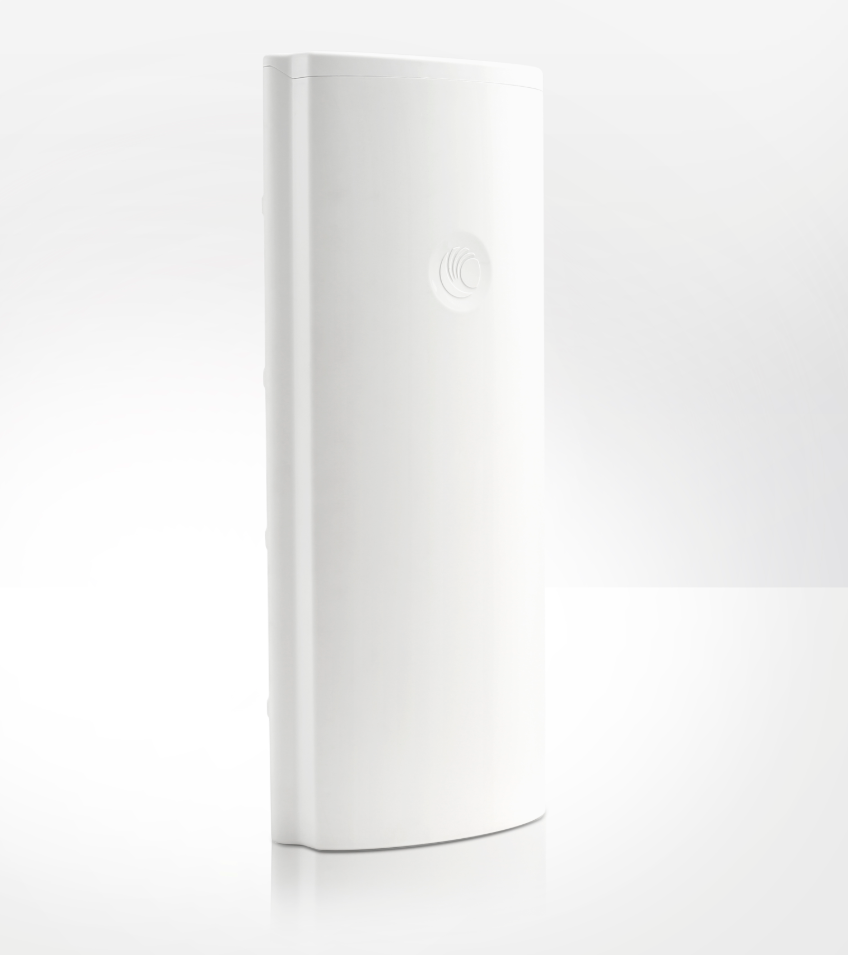

Cambium Networks C050910D301A ePMP 4x4 MU-MIMO 17dBi Sector Antenna (for ePMP3000AP)

Product Features:

• 17dBi Gain

• 4.9 to 5.97GHz Spectrum

• 30dBi Front to Back Ratio

• IP 65 Ruggedisation

Product Specifications:

• Model Number C050910D301A

• Frequency Range 4.9 GHz to 5.97 GHz

• Gain 17 dBi

• 3 dB Beam-width - Azimuth 70 degrees

• 3 dB Beam-width - Elevation 6 degrees

• Electrical Downtilt -2 degrees

• Polarisation 2X Horizontal, 2X Vertical

• Model Number C050910D301A

• Port-to-Port Isolation > 20 dB

• Front-to-Back Ratio 30 dB

• Maximum Input Power 5 W

• Input Impedance 50 ohms

• Mounting Connectors 4 x RP SMA

• Mounting Hardware Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt

• Hardware included to connect ePMP access point to back of antenna body

• Physical Dimensions Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)

• Weight Antenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg

• Environmental IP65

• Radome Material UV Protected ABS

• Operating Temp -400C to 600C (-400F to 1400F)

Product Includes:

(1) ePMP 3000 Sector Antenna

(1) User Manual

Click here for data sheet
